Force Plate

Our force plate, or force platform, is a desktop device for capturing dynamic forces, such as the use of a computer mouse, writing or tapping to music.

The device captures the total force the participant exerts together with where on the platform the force was made.

Software is supplied to log the data from the force plate and a DLL is available for developers to write their own applications.

Specifications

	Working measurement area: 210 X 160mm Max force: 5Kgf Sample rate: 120Hz ADC Resolution: 24 bits Measurement Resolution: better than 1gf Power: From host computer Interface: USB

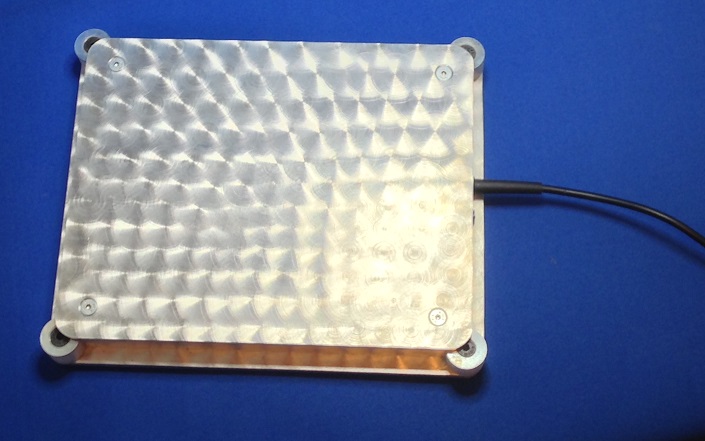

Image for illustrative purposes only, please refer to product description

Please email info@psyal.co.uk for further technical information.
